Drum Top Vacuum - ATEX

Drum Top Vacuum - ATEX explosion proof certified vacuums

Spillrite Explosion-Proof Vacuum Cleaners are ATEX certified and UKCA certified safe for use in hazardous locations as part of a combustible dust control program and are suitable for most flammable and combustible waste. Spillrite vacuums are certified under ATEX directive for Europe and also UKCA EX for the United Kingdom. These standards are for equipment approved for use in explosive atmospheres.
This drum Top vacuum is a twin & triple venturi system bolted to am alloy or stainless steel drum top that suiots all drum sizes worlwide including 44/55/205/210. The system produces high vacuum and is ideal as a spill control unit for oils, chemicals, bilge, salt water and most non flammable fluids. The Drum Top Vacuums when fitted with n anti-static dry filter can be used for all combustible dry waste. When fitted with reverse filter clean and a cyclone they are effective for the recovery of combustible fine dusts.

ATEX label Zone1 100

DTV Y 24 ATEX

Drum Top Vacuum - ATEX explosion proof

  1. Drum Top Vacuum - industrial cleaning system
  2. Metal suction intake fittings
  3. Metal base plate (alloy or stainless steel)
  4. Anti-static suction hose
  5. Metal suction wand set
  6. Grounded steel drum
  7. Wire fitted across internal gasket for static pathway between head and drum
  8. Alloy or stainless steel silencer shroud
  9. Pneumatic control valve
  10. ATEX certified label

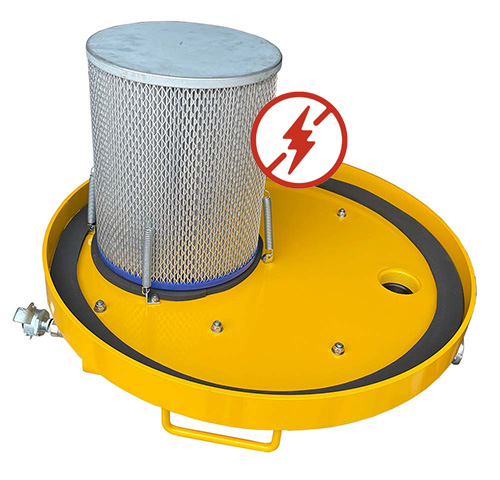

Dry anti static ATEX filter

 Anti-static explosion proof dry filter cartridge attached to lid via metal springs creating static pathway from filter to lid

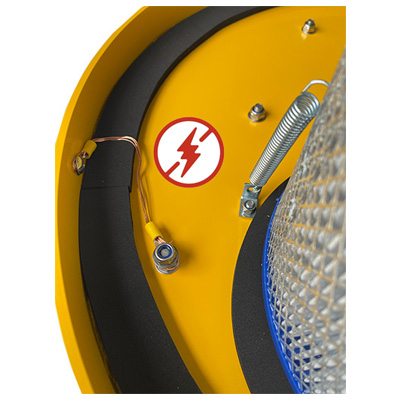

 Drum Top Vac lid AS wire

Drum Top Vac underside anti-static pathway wire

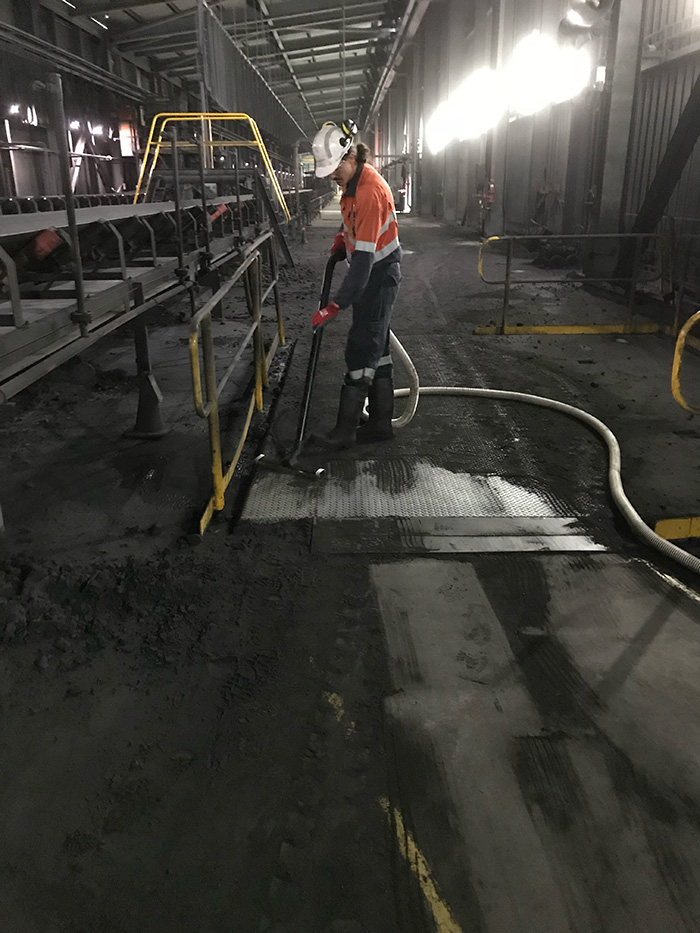

 Drum top vacuum explosion proof ATEX certified recovering combustible coal dust.

Coal dust pneumatic vacuum
